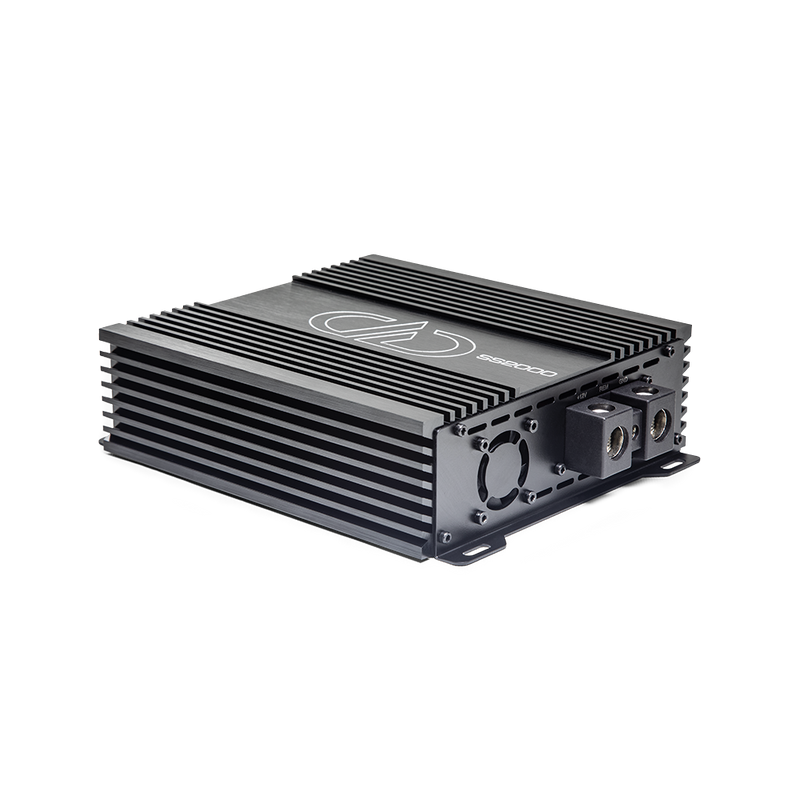

DD Audio SS2000 SUPER SMALL MONOBLOCK


Price:
Sale price$399.00

Description

The new SS2000 is the latest half bridge, midpower, high speed, full range, class D amplifier able to fulfill many different system designs. This monoblock comfortably makes in excess of 2000 watts of 20Hz -20kHz power at less than 1% THD+N, at 1 Ohm. The SS2000 can drive subwoofers and multiple mid/high speaker combinations with sound quality exceeding the current crop of low cost full bridge amplifiers.

The design starts with our normal DD style strong power supply, using a high efficiency toroidal transformer coupled to an oversized cap bank and high current mosfets. Power delivery is clean and unstressed while the internal fan cooling with the thick walled DD style aluminum heat sink allows a very small footprint, 7.3” wide x 7.7” deep.

Features

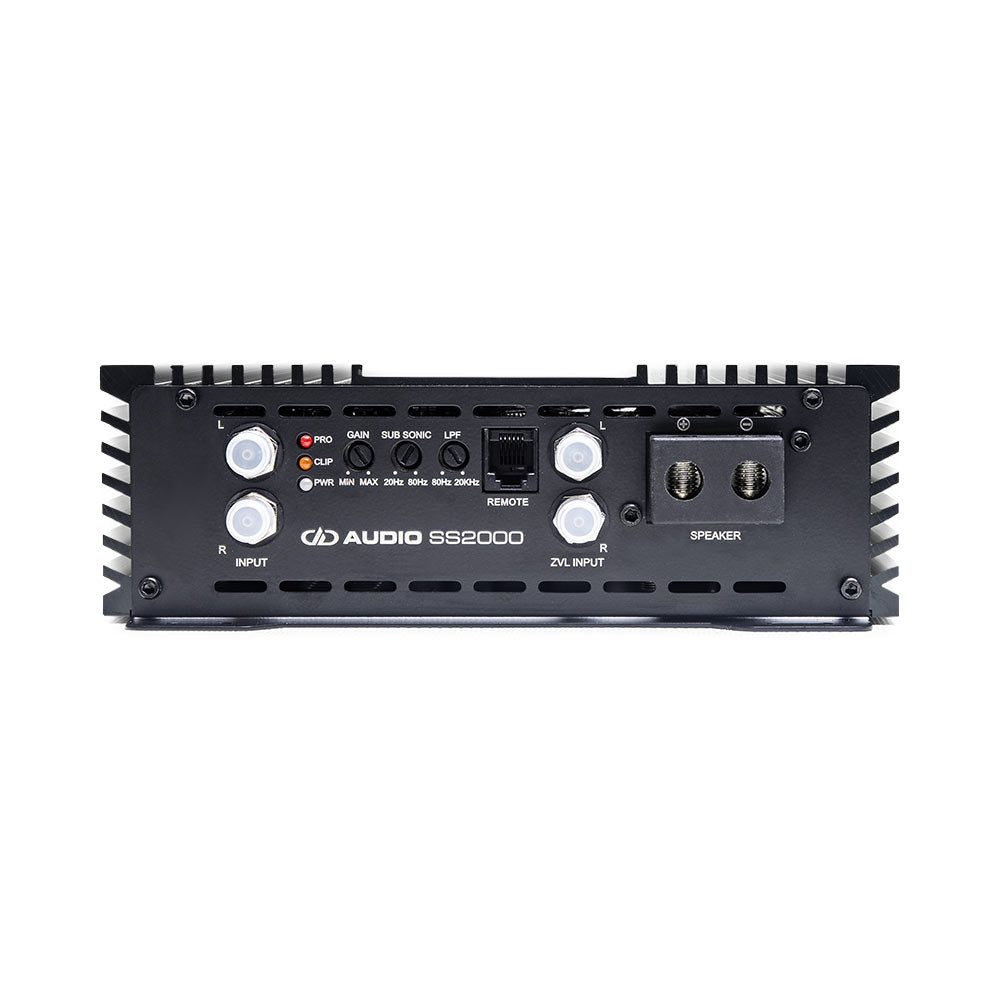

  • ZVL Inputs
  • 12dB/Oct High Pass 20Hz – 80Hz
  • 12dB/Oct Low Pass 80Hz – 20khz
  • Heavyweight DD Aluminum Chassis

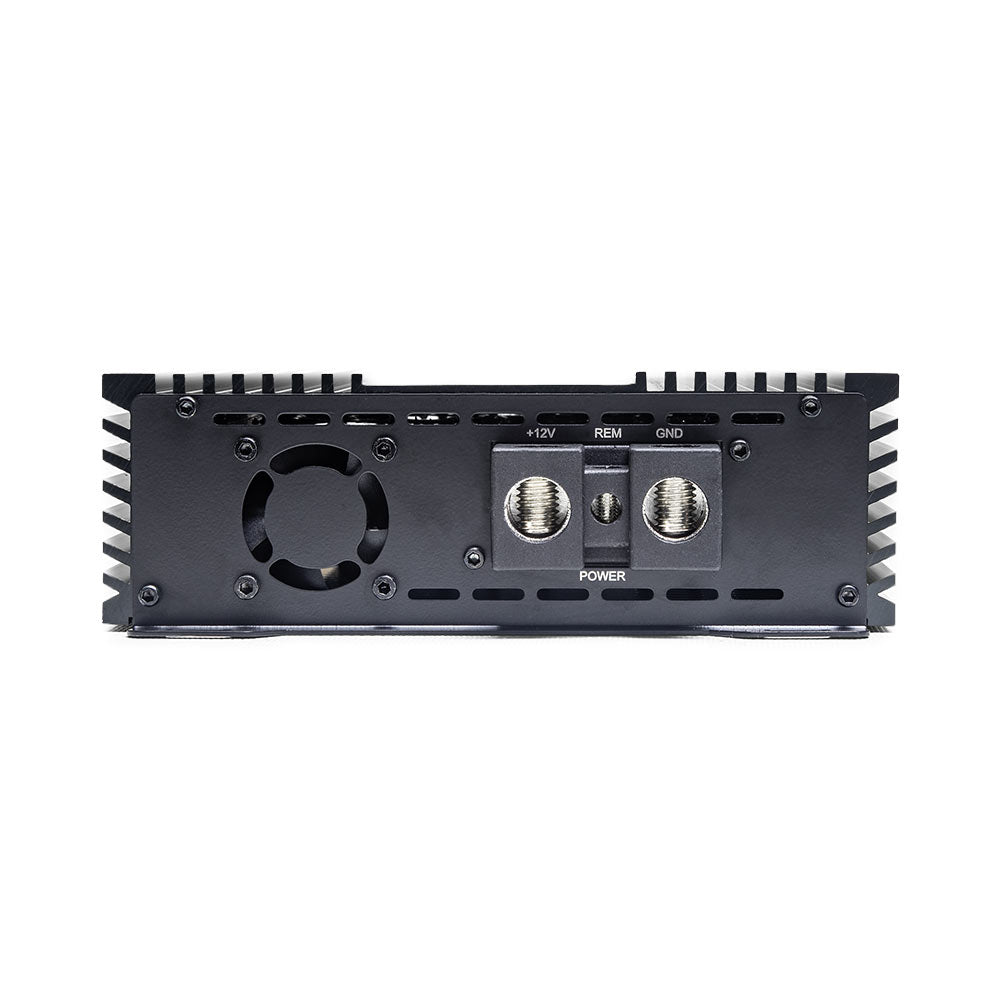

  • Set Screw Power and Speaker Terminals
  • Remote Gain Control
  • 0 AWG Power Terminals

General Specifications

SS2000: 2000 Watt – Compact Monoblock Amplifier

Operating Voltage: 9 - 16
Test Voltage: 14.4
Input Channel(s): 2
Output Channel(s): 1
Continuous Wattage @2ohm: 1400
Continuous Wattage @1ohm: 2000
Max Current Draw (Amps): 200
RCA Input Voltage Sensitivity: 6 - 0.25
High-Level Input Voltage Sensitivity: 20 - 1.1
RCA Input S/N: > 95
Damping Factor: > 100
THD: < 1.0%
Frequency Response (Hz): 20 - 20k
Sub-Sonic Filter: 20 - 80
Low-Pass Filter: 80 - 20k
ZVL Input: Yes
Remote Control: Remote Included in Box
Power Wire Gauge: 0
Speaker Wire Gauge: 8
Dimensions (Inches): 7.8 x 7.3 x 2.4
Dimensions (MM): 198 x 185 x 60
Shipping Weight (Lbs): 5
Price (USD): 399 each
