Description
OVERVIEW
Transform your SUV into an absolute beast with Rough Country’s 7in Suspension lift for Suburban / Yukon XL models. This all-inclusive kit comes with everything you need aggressive overhaul to your vehicle!

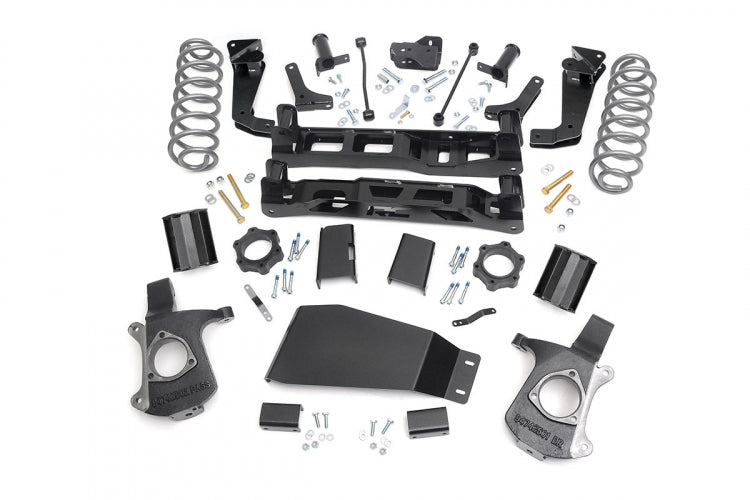

Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.
A set of Lifted Coil Springs and Upper Strut Spacers provide incredible ground clearance, offering enough ride height to run up to 35in tires! This kit also features sway-bar links, shock extensions, brake line brackets, and a durable lower skid plate for unbeatable protection.
This kit also includes sway-bar drop brackets and differential drop brackets to ensure all components align properly after lifting while providing a factory-like ride and an aggressive stance. Includes Rough Country’s Lifetime Replacement Guarantee!
Featuring a set of beefy lifted knuckles and 1/4in thick steel front and rear high-clearance crossmembers, this kit offers plenty of muscle to handle hazards both on and off-road.
A set of Lifted Coil Springs and Upper Strut Spacers provide incredible ground clearance, offering enough ride height to run up to 35in tires! This kit also features sway-bar links, shock extensions, brake line brackets, and a durable lower skid plate for unbeatable protection.
This kit also includes sway-bar drop brackets and differential drop brackets to ensure all components align properly after lifting while providing a factory-like ride and an aggressive stance. Includes Rough Country’s Lifetime Replacement Guarantee!
FEATURES
- Unmatched ground clearance from high clearance crossmember design.
- 100% precision laser cut materials used in latest computer aided design process.
- No strut disassembly or strut compressor required for installation. (SKU: 28700)
- Requires no modification to the stock differential mounts, drivetrain or exhaust.
- Provides highly sought level stance when complete.
SPECIFICATIONS
- Brand: Rough Country
- Est. Install Time: 8-10 hours
NOTES - IMPORTANT
- Does NOT fit Auto Ride or Auto Leveling models.
- Does NOT fit models with electric steering.
- Does NOT fit AWD models.
- Minor cutting and drilling is required.
- 18in or larger wheels are required.
- Please view instructions for complete information on proper tire/wheel combinations.
- SKU: 28700 includes Front Upper Strut Spacers
- SKU: 287.23 includes N2.0 Lifted Front Struts
VEHICLE FITMENT
YEARS | DRIVE | MAKE | MODEL |
---|---|---|---|
2007-2014 | 2WD | Chevy | Suburban 1500 |
2007-2014 | 4WD | Chevy | Suburban 1500 |
2007-2014 | 2WD | GMC | Yukon XL 1500 |
2007-2014 | 4WD | GMC | Yukon XL 1500 |
RECOMMENDED TIRES & WHEELS
TIRE | WHEEL | BOLT PATTERN | OFFSET | NOTE |
---|---|---|---|---|
295/70R18 | Factory 18 | 6x5.5 | - | 0.25 Spacer |
295/60R20 | Factory 20 | 6x5.5 | - | 0.25 Spacer |
33x12.50R18 | 18x8.5 | 6x5.5 | +0 | - |
305/65R18 | 18x8.5 | 6x5.5 | +0 | - |
33x12.50R18 | 18x8.5 | 6x5.5 | +1 | - |
305/65R18 | 18x8.5 | 6x5.5 | +1 | - |
35x12.50R18 | 18x9 | 6x5.5 | +0 | Minor Trimming |
33x12.50R18 | 18x9 | 6x5.5 | +0 | - |
305/65R18 | 18x9 | 6x5.5 | +0 | - |
35x12.50R18 | 18x9 | 6x5.5 | +1 | Minor Trimming |
33x12.50R18 | 18x9 | 6x5.5 | +1 | - |
305/65R18 | 18x9 | 6x5.5 | +1 | - |
285/75R18 | 18x9 | 6x5.5 | +12 | - |
35x12.50R18 | 18x9 | 6x5.5 | +18 | Minor Trimming |
33x12.50R18 | 18x9 | 6x5.5 | +18 | - |
305/65R18 | 18x9 | 6x5.5 | +18 | - |
285/75R18 | 18x9 | 6x5.5 | +18 | - |
35x12.50R18 | 18x9 | 6x5.5 | +19 | Minor Trimming |
35x12.50R18 | 18x9 | 6x5.5 | +20 | Minor Trimming |
33x12.50R18 | 18x9 | 6x5.5 | +20 | - |
305/65R18 | 18x9 | 6x5.5 | +20 | - |
35x12.50R20 | 20x9 | 6x5.5 | +0 | - |
33x12.50R20 | 20x9 | 6x5.5 | +0 | - |
305/55R20 | 20x9 | 6x5.5 | +0 | - |
295/60R20 | 20x9 | 6x5.5 | +0 | - |
35x12.50R20 | 20x9 | 6x5.5 | +1 | Minor Trimming |
33x12.50R20 | 20x9 | 6x5.5 | +1 | - |
305/55R20 | 20x9 | 6x5.5 | +1 | - |
295/60R20 | 20x9 | 6x5.5 | +1 | - |
295/65R20 | 20x9 | 6x5.5 | +12 | - |
35x12.50R20 | 20x9 | 6x5.5 | +18 | Minor Trimming |
33x12.50R20 | 20x9 | 6x5.5 | +18 | - |
305/55R20 | 20x9 | 6x5.5 | +18 | - |
295/65R20 | 20x9 | 6x5.5 | +18 | - |
295/60R20 | 20x9 | 6x5.5 | +18 | - |
35x12.50R20 | 20x9 | 6x5.5 | +20 | Minor Trimming |
33x12.50R20 | 20x9 | 6x5.5 | +20 | - |
305/55R20 | 20x9 | 6x5.5 | +20 | - |
295/60R20 | 20x9 | 6x5.5 | +20 | - |
35x12.50R20 | 20x10 | 6x5.5 | -19 | Trimming Required |
295/60R20 | 20x10 | 6x5.5 | -19 | Minor Trimming |
35x12.50R20 | 20x10 | 6x5.5 | -18 | Trimming Required |
295/60R20 | 20x10 | 6x5.5 | -18 | Minor Trimming |
35x12.50R22 | 22x10 | 6x5.5 | -19 | Trimming Required |
